CONTROL PANEL
The device is equipped with an intuitive LCD touch-screen control panel, that allows the management of the operation parameters and the visualization of preview images.
DETECTOR
TCA 7 Compact is available with 21 x 21 cm or 30 x 30 cm detector panel, both realized with aSi Technology.
GRID
The device is equipped with a removable anti-scattering grid to reduce the quantity of scattered radiation that reaches the FPD. The grid can be removed for low-dose pediatric applications.
LASER TARGETING DEVICE
A laser targeting device on tube and detector side is available as optional and allows patients positioning without radiation.
PAEDIATRIC FILTERS
The collimator is equipped with motorized filters for pediatric applications.
MONOBLOC
TCA 7 Compact is available in the 3,5 kW version with fixed anode and in the 5 kW version with rotating anode.
MOTORIZED UP-DOWN COLUMN MOVEMENT
The large motorized vertical stroke of the column greatly simplifies the use of the equipment in the operating room.
MOTORIZED C-ARM ROTATION
The motorized c-arm rotation around the horizontal axis, in the range ±30°, is available as optional and it is essential in urological applications.
DRIVING HANDLE
The unit is equipped with a driving handle that allows movement in various directions and the locking of the rear wheels.

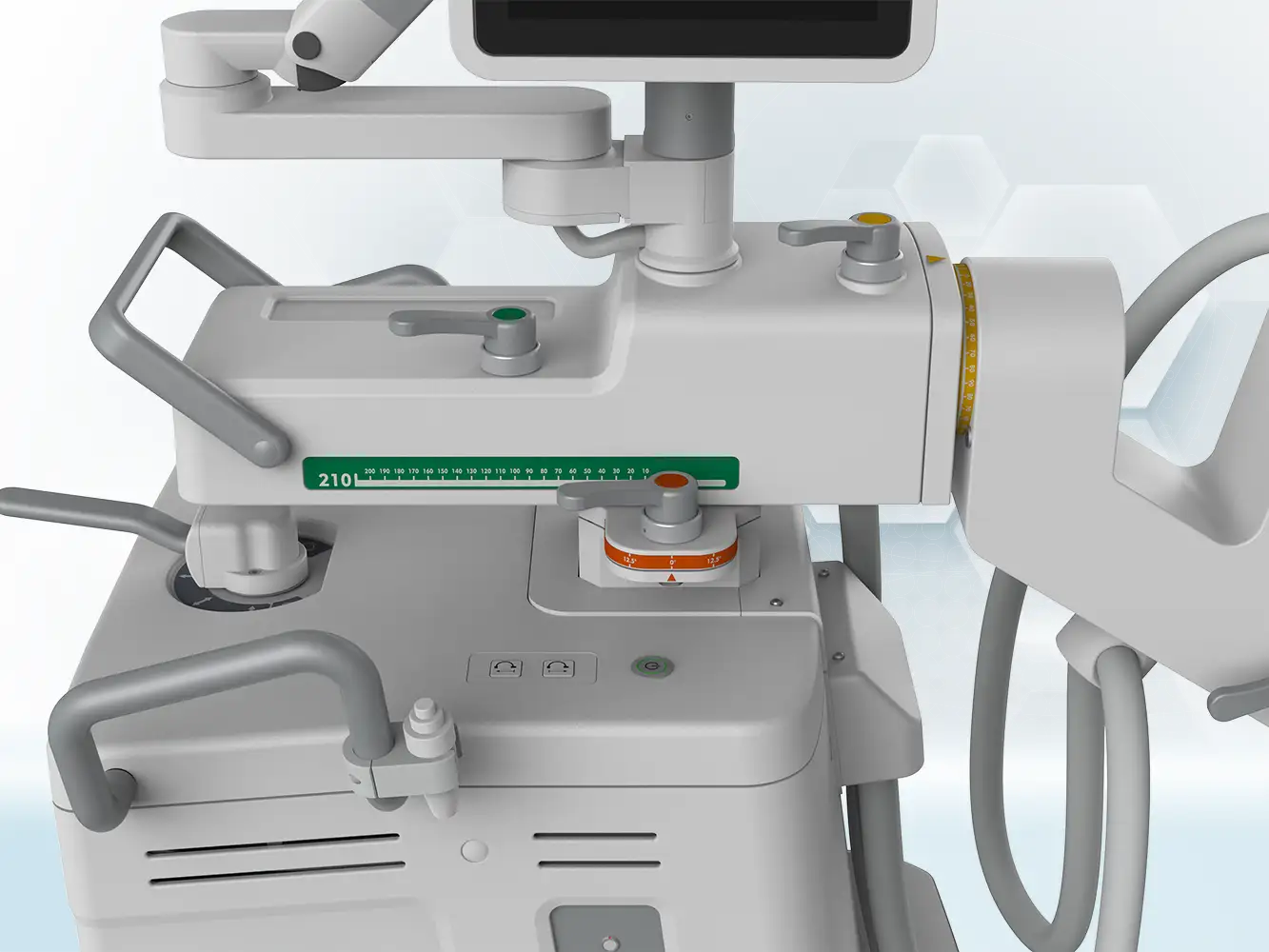

C-ARM MOVEMENTS
To facilitate their recognition by operators, c-arm movements are identified by different colors and by colored graduated scales.

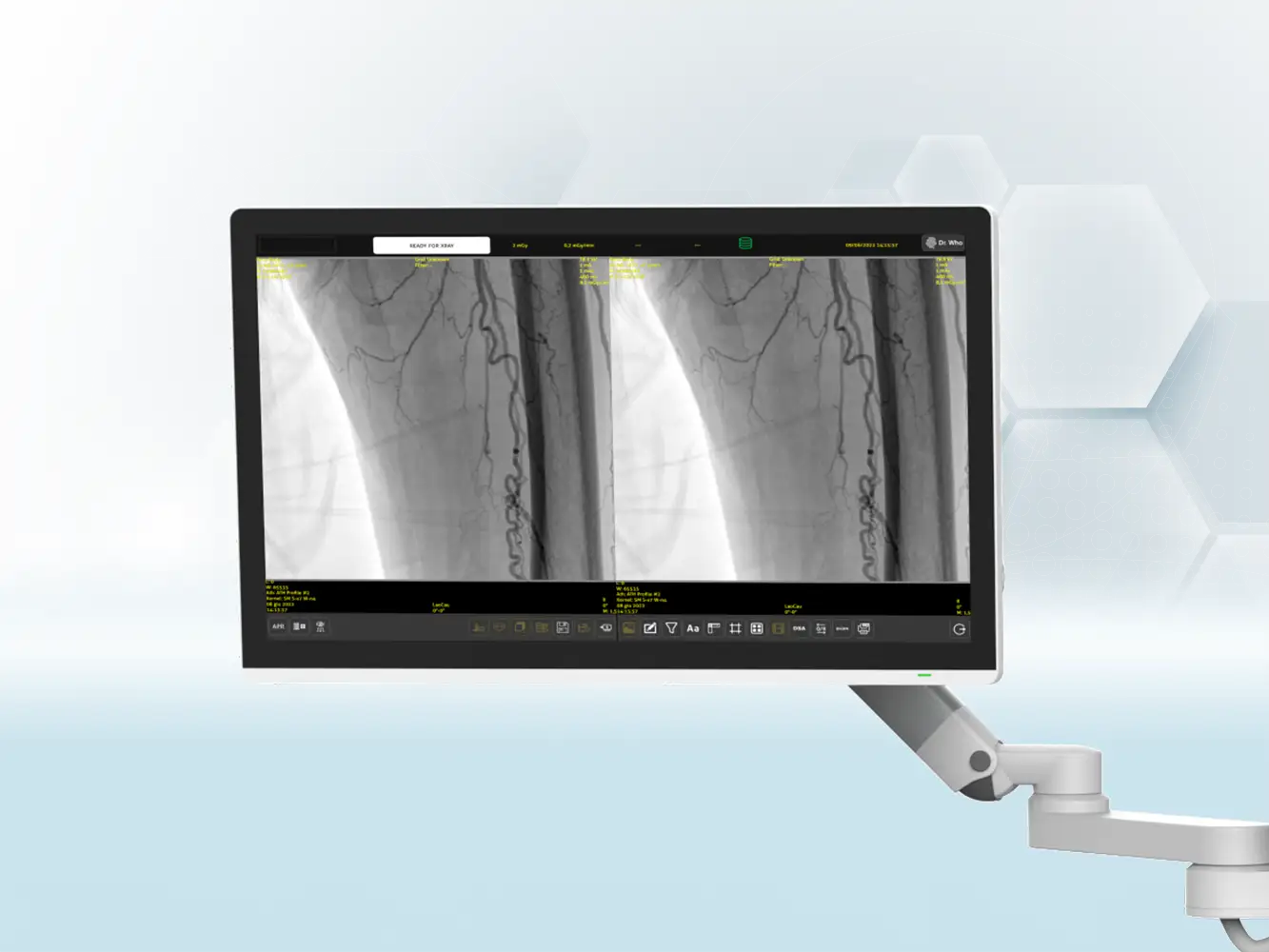

WORK MONITOR
The 27” touchscreen monitor, digitally divided into live and reference monitors, is mounted on an articulated support arm, allowing it to be placed in the most comfortable position for the operators. Moreover, the imaging software has a simple and intuitive graphic interface.
WHEELS AND CABLE PUSHERS
Twin-wheel casters with high diameter guarantee easy maneuverability, while the short basement allows to get closer to the operating table. All wheels of the mobile stand are provided with cable pushers, to avoid cables squeezing.
HDMI OUTPUT
One HDMI output is available as optional, to replicate what displayed on the 27’’ monitor also on another screen.
The integrated workstation, with high resolution touchscreen monitor and a more intuitive user’s interface, facilitate doctors’ work. The system is available in 3,5 kW and 5 kW version.
